Yuma Model 20
One of the industry's largest mobile work platforms in both working height and length!
・A 2-meter class mobile working platform.
- Certification
- NETIS Registered Products
Registration No.: CG-200021-VE *Target: model 20 with Safety Guard
Features
-
It can be folded even with the safety guard attached.
- Can be used at a working height of approximately 4m.
- Using options allows for safer and more stable operations.
Specifications
Yuma Model 20
| Model | ESK-20 |
|---|---|
| Top panel dimensions: width (mm) | 500 |
| Top panel dimensions: length (mm) | 2,060 |
| Top panel height (mm) | 1,723–1,970 |
| Adjustable range (mm) | 20 |
| Step width (mm) | 60 |
| Mounting dimensions width (mm) | 968–1,030 |
| Mounting dimensions length (mm) | 3,284–3,440 |
| Storage dimensions width (mm) | 968 |
| Storage dimensions length (mm) | 2,222 |
| Storage dimensions height (mm) | 220 |
| Mass (kg) | 27.7 |
| Max load kN(kgf) | 1.47(150) |
Options
-
Integrated safety guard for gable side
Safety guard integrated with gable-side bar. Exclusive to model 20.
●Dimensions = Height (mm): 792
●Weight (kg): 2.0 -
Outrigger
Prevents the main unit from tipping over.
Choose from various locations and quantities, such as 2 points on one side or 1 point on both sides. For use with model 20 only.
●Dimensions = Length (mm): 1,299 to 2,152
●Weight (kg): 1.9 -
Connecting Bridge
Attaches to the main unit to secure a wide work platform.
●Dimensions = Width × Length (mm): 500 × 1,648
(Width × Length: 500 × 1,595 effective dimensions)
●Weight (kg): 8.3 -

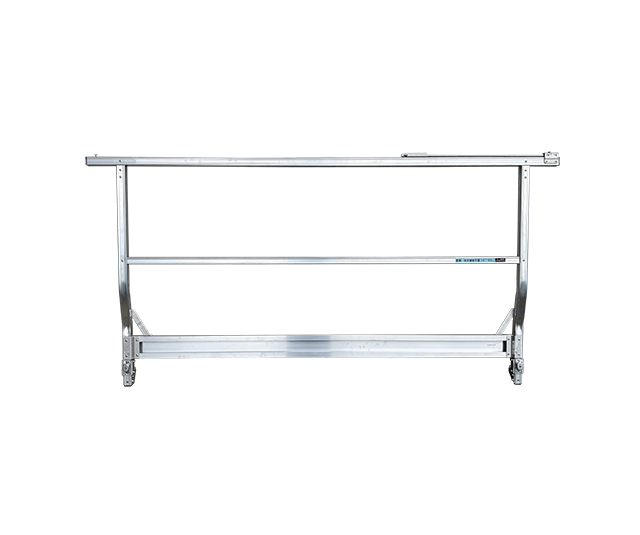

Gable-side Integrated auxiliary handrail
Auxiliary handrail integrated with the ledger bar. Designed exclusively for model 20.
●Dimensions = Height (mm): 899.5
●Weight (kg): 6.7
