Up Star Series
Elevating mobile scaffolding designed to save labor and improve efficiency in operations
・The lightweight body makes loading and transport easy.
・Suitable for new construction, renovation, and repair work.
- Certification
- Machine number management product
Features
-

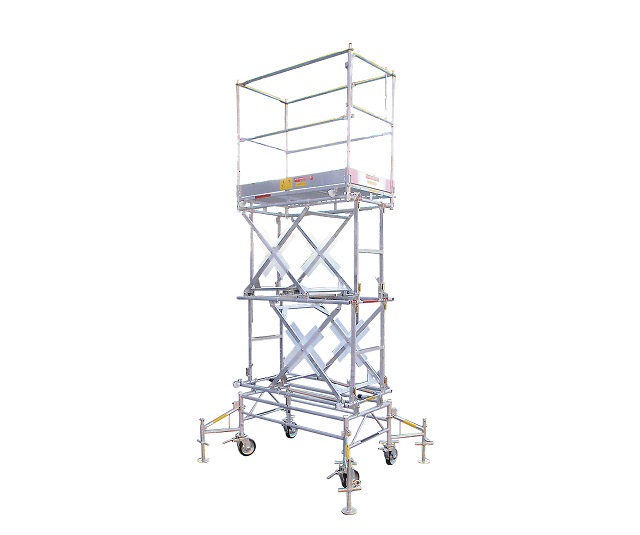

Up Star Junior -
Up Star 25-inch -

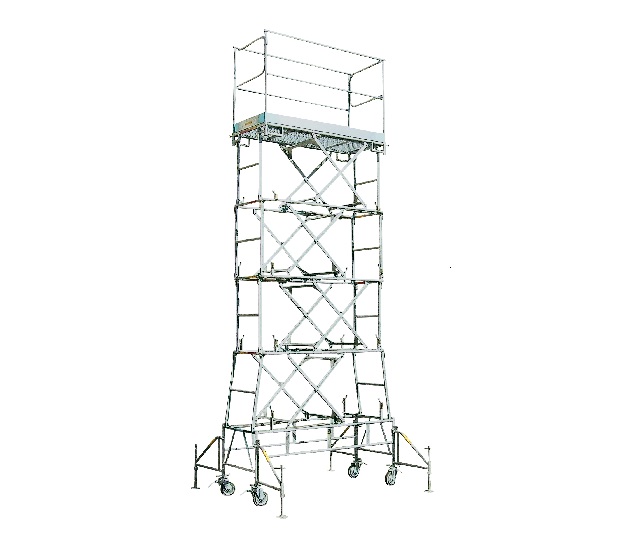

Up Star 36-inch -
Up Star 43-inch -

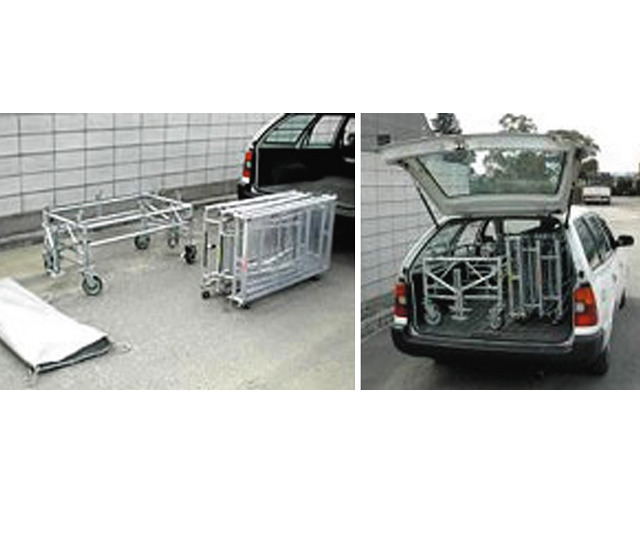

Assembly and disassembly require no tools. Additionally, the unit can be disassembled to fit into and be transported in a commercial light van.
(Up Star Junior only) -

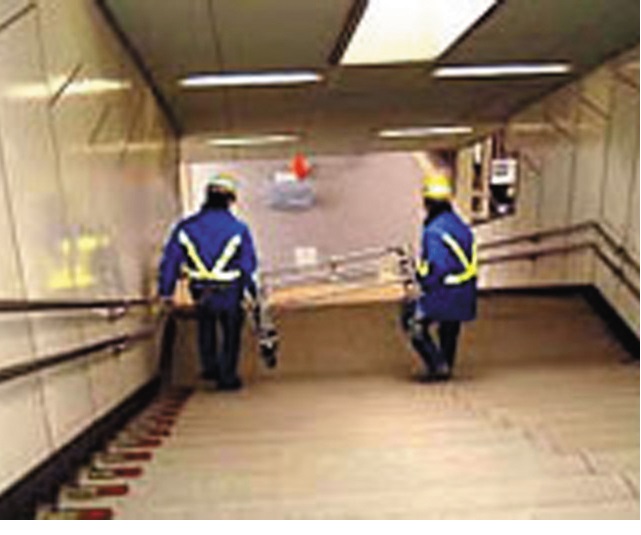

By separating the unit, two people can carry it, and it can be moved up and down stairs. Even when separated, it can be moved using the casters on the upper sides of the main unit.
(Up Star Junior only)
Specifications
Up Star
| Model | US-21jr | US-25 | US-36 | US-43 |
|---|---|---|---|---|
| Working Floor Dimensions: Width (mm) | 590 | 590 | 590 | 590 |
| Working Floor Dimensions: Length (mm) | 1,100 | 1,500 | 1,500 | 1,500 |
| Working Floor Height (mm) | 1,020 / 1,600 / 2,180 | 970 / 1,530 / 2,120 / 2,580 | 1,390 / 1,950 / 2,530 / 3,110 / 3,620 | 1,610 / 2,170 / 2,750 / 3,330 / 3,840 / 4,350 |
| Mounting dimensions width (mm) | 1,156 | 1,350 | 1,700 | 1,790 |
| Mounting dimensions length (mm) | 1,666 | 1,786 | 1,986 | 1,986 |
| Storage dimensions width (mm) | - | 890 | 876 | 876 |
| Storage dimensions length (mm) | - | 1,830 | 1,986 | 1,986 |
| Storage dimensions height (mm) | - | 970 | 1,390 | 1,610 |
| Total Mass kg | 120 | 143 | 191 | 229 |
| Mass Manual kg | 21 | - | - | - |
| Mass Upper kg | 57 | - | - | - |
| Mass Lower kg | 42 | - | - | - |
| Max load kN(kgf) | 1.17(120) | 1.31 (133) | 1.31 (133) | 1.31 (133) |
Options
-

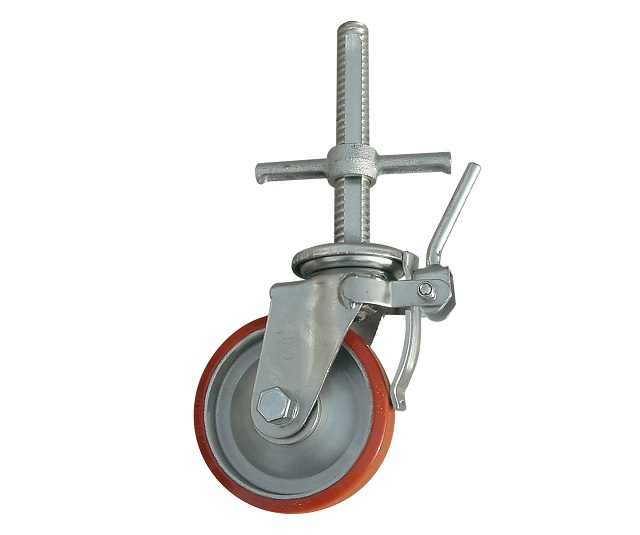

Urethane Caster
Related Equipment
Doyaku (Inclined Platform)
Allows ascent and descent from both sides, making it useful for stepping over level differences.
