Roll Box Pallet
Easy assembly for transport and storage! Add shelves for even more flexibility!
- Machine number management product
Features
-

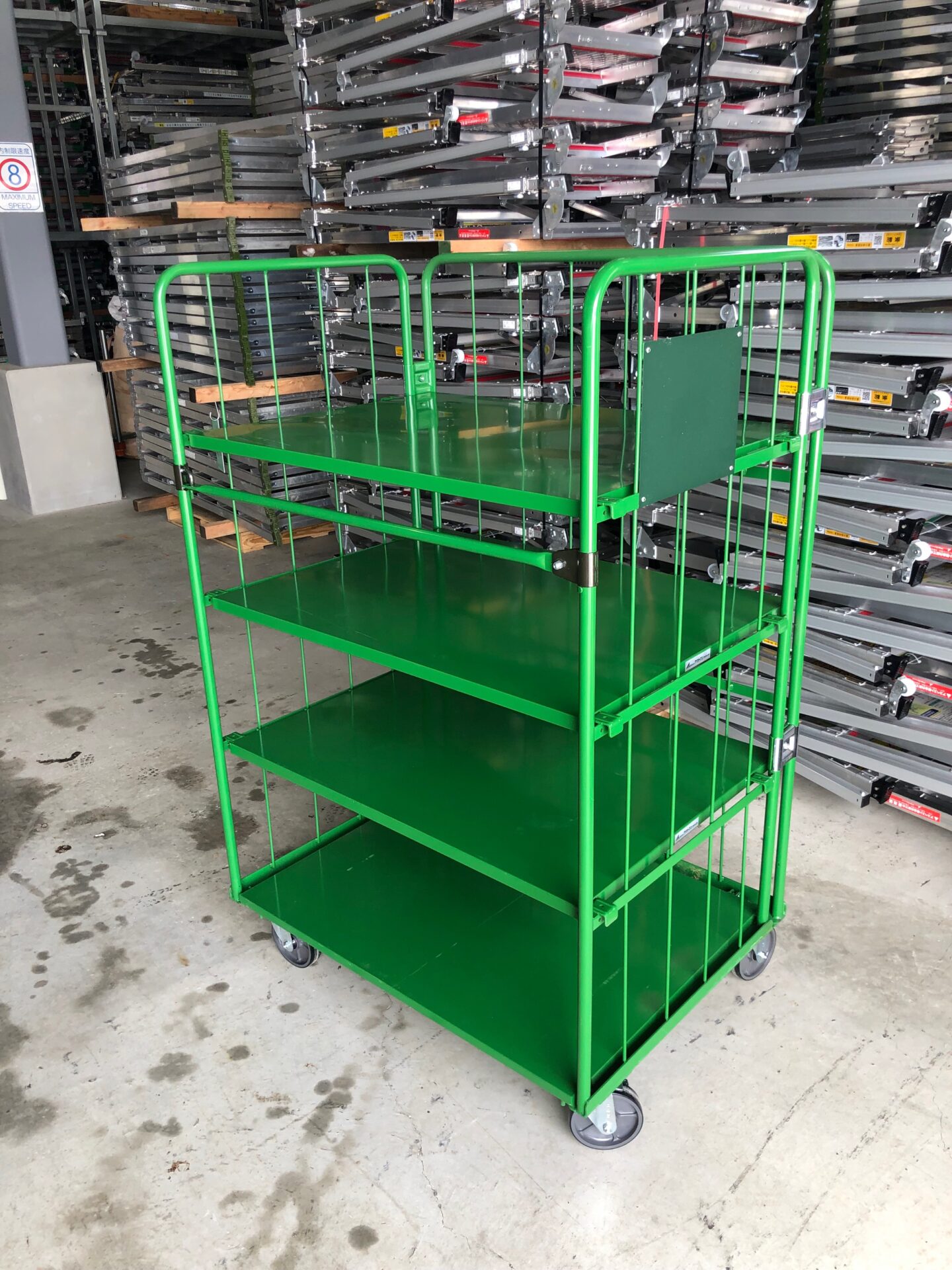

■ Example Use: SR-5 with 3-Shelf Set
Intermediate shelf installation positions = 400, 765, 1130 from the floorboard
- Up to 3 intermediate shelves can be installed
- Casters allow movement in all directions
- Folds into an L-shape for compact storage
Specifications
Roll Box Pallet
| Model | SR-3 | SR-5 |
|---|---|---|
| External dimensions width (mm) | 850 | 1,100 |
| External dimensions length (mm) | 650 | 800 |
| External dimensions height (mm) | 1,700 | 1,700 |
| Max load kN(kgf) | 4.90 (500) | 4.90 (500) |
| Mass (kg) | 43 | 52 |
Material
Floorboard and Frame: Steel
Casters: Urethane
Options
-

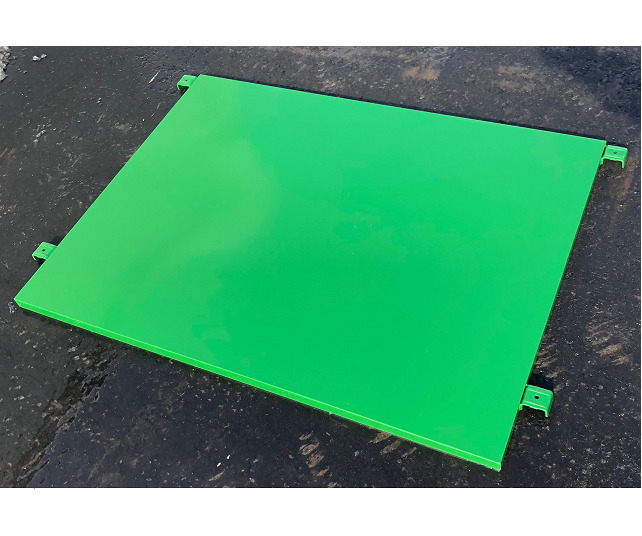

Intermediate Shelf
Set of up to 3 available
-

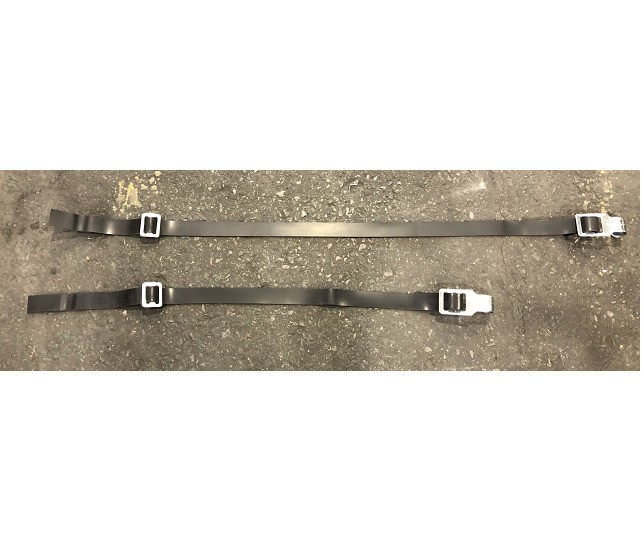

Rubber Band (For Sale)
Common Options
■Caster Cover (For Sale)
Convenient caster covers for preventing dirt on job sites
Click here for details
