Renovation Scaffolding
Mobile scaffolding ideal for interior construction, finishing, and renewal work.
During renovation work, it is possible to erect scaffolding while leaving the existing desks etc. in place.
Features
-

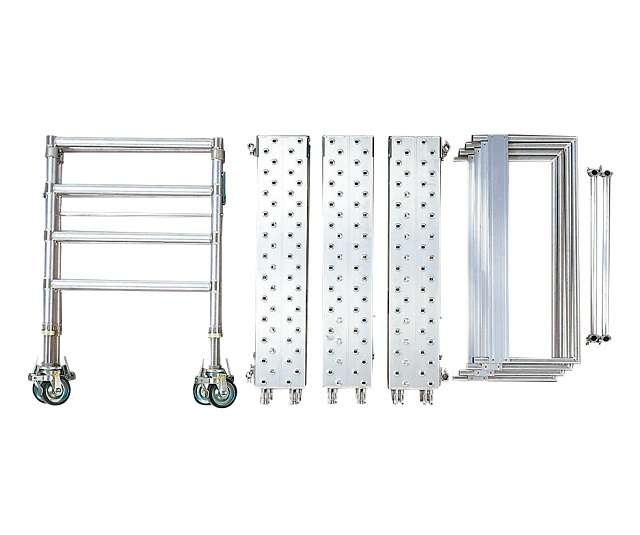

Once disassembled, it can be transported through the door or by elevator. -

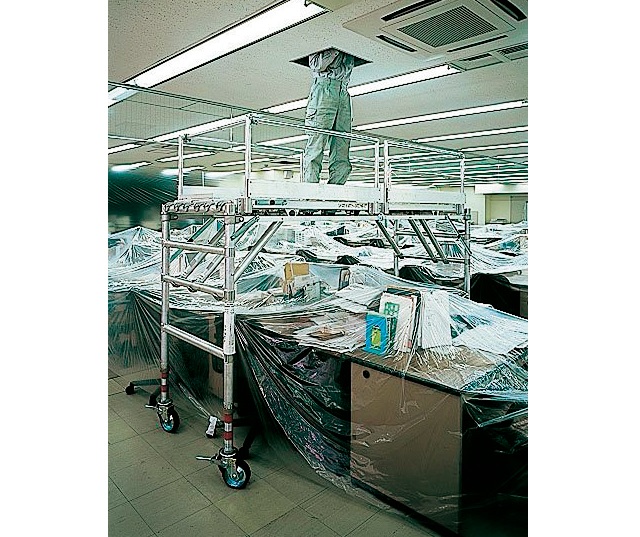

■Example of on-site use
Specification
Renovation Scaffolding RN-135
| Working floor dimensions width mm | 764 |
|---|---|
| Working floor dimensions Length mm | 2,414 |
| Working floor height mm | 1,344～1,644 |
| Mounting dimensions width (mm) | 1,045 |
| Mounting dimensions length (mm) | 2,740 |
| Mass (kg) | 97.8 |
| Max load kN(kgf) | 1.96(200) |
Related Equipment
Hiryu
One-piece design for quick assembly. It saves space when stored.
The top plate can be extended up to 1,800mm. It can be installed by dodging obstacles. Also, the shortest distance is 1,400mm, making it effective even in narrow spaces.
Kons-arch
・When carrying out renovation work, it is possible to set up scaffolding with existing desks and other fixtures still in place.
- Unit structure reduces assembly and storage time
・Handrails, four-way sensors, and special ladders are standard equipment
