Ultra-Confined Space Inspection Drone "IBIS2"
A drone that finds risks hidden in narrow, dark, and dirty places in place of humans
An industry-minimum, lightweight, palm-sized drone.
Effective for inspecting building ceiling cavities, under floors, inside tunnels, and water supply facilities.
Helps avoid risks and resolve labor shortages in equipment inspection work.
Also contributes to cost reduction and improved equipment operating rates by eliminating the need to set up scaffolding for work.
Features
1. IP51 compliant for stable flight even in dusty and damp environments
Equipped with motors featuring a custom dust-proof structure and built to IP51 standards, enabling stable flight in environments exposed to dust and water droplets.
2. Clear footage even in the dark
Delivers clear video footage using a high-sensitivity image sensor and lighting that closely approximates natural light.
3. Stable flight to reach the deepest areas
Featuring a proprietary flight control system and round frame design, it ensures stable flight even in tight spaces where contact with walls is anticipated.

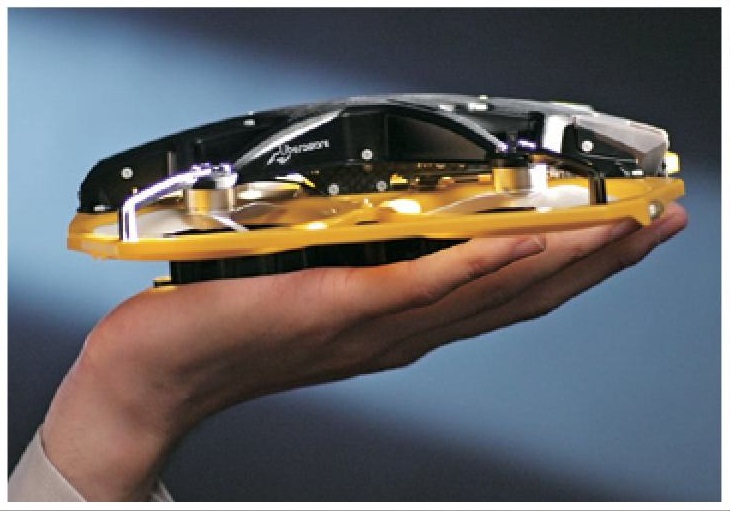

4. Measuring 20 cm in both height and width, the compact size allows access to extremely tight spaces.
Industry-leading small class size for an industrial drone.
Capable of entering 30 cm square access points and flying within 50 cm diameter pipes.
5. Weighing only 243 g, it is one of the lightest in the industry.
Along with its size, its weight is also among the lightest in the industry for an industrial drone.
The flexible and lightweight body made of polycarbonate material minimizes damage to facilities even in the rare event of a collision, reducing the risk of aircraft damage.
6. Extension antenna provides peace of mind even in areas where radio waves cannot reach
By using an extension antenna, you can create a wireless environment even in areas where radio waves cannot reach, enabling flight.
7. Improved return rate with Turtle Mode
Turtle Mode allows you to take off again even if the drone is upside down.
This reduces the risk of the drone being left behind.
8. Maximum flight time of 11 minutes
Despite having one of the smallest body sizes in the industry, it is capable of up to 11 minutes of flight.
9. Two rental plans available
-

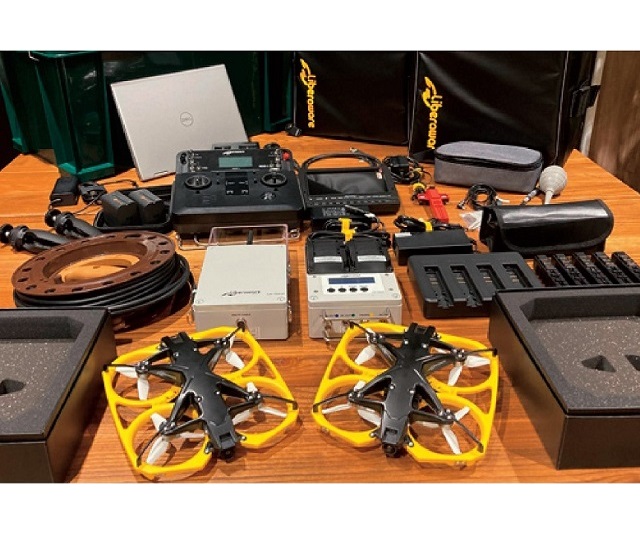

■ Rental Plan (from 1 month)
A plan that includes only the aircraft and all necessary equipment for shooting.
A wireless station license application is required to operate the drone. -

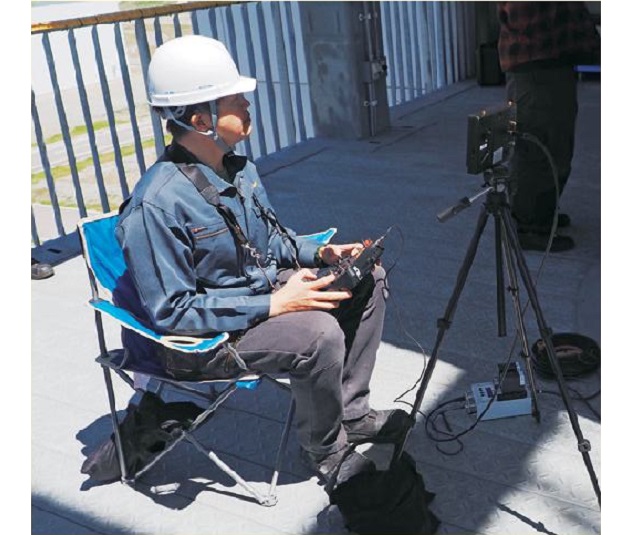

■ Inspection Service Plan (from 1 day)
A manufacturer-certified drone pilot will visit the site to perform flight and shooting operations. Video delivery is standard, but we can also generate 3D models and inspection data upon request.
Example of use
-

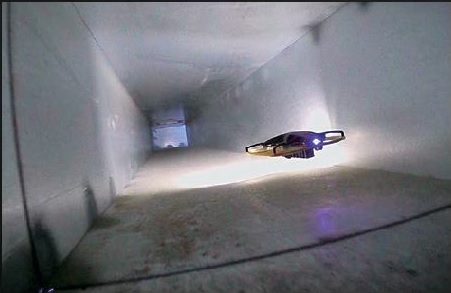

Ducts and Piping Interiors -

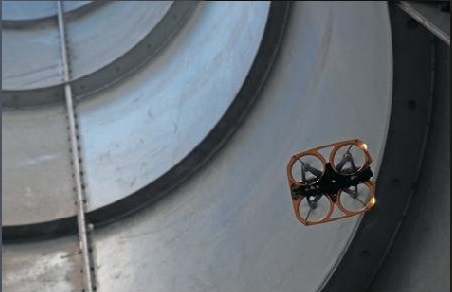

Flue Interiors -

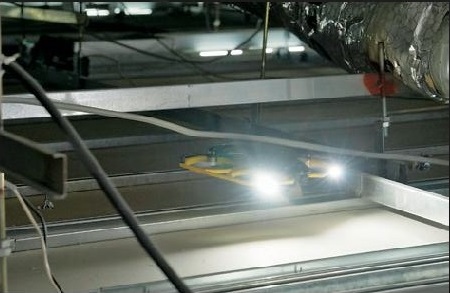

Ceiling Voids and Underground Pits -

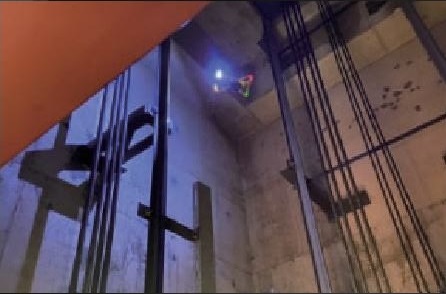

Elevators and Bridge Interiors -

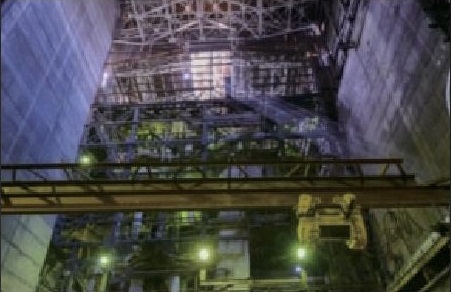

Boiler Interiors -

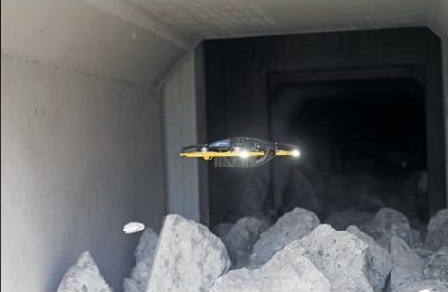

Sewers and Culvert Interiors -

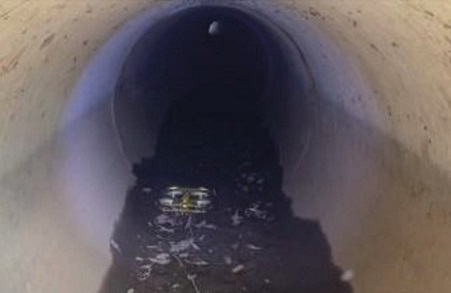

Sewers -

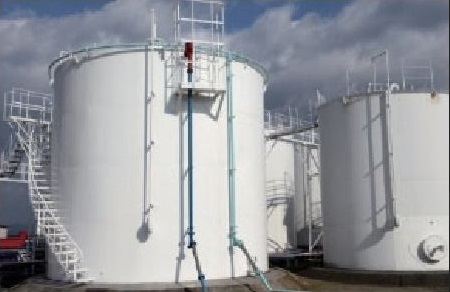

Tank Interiors
Specifications
IBIS2
| External Dimensions | 194mm × 198mm × 58mm |
|---|---|
| Quality | 243 g (Aircraft: 150g, Battery: 93g) |
| Maximum Flight Time | 11 minutes (without payload) / 9 minutes (with payload) |
| Maximum wind speed resistance for flight | 3 m/s |
| Flight Controller | Manufactured by Liberaware |
| Water and Dust Resistance | IP51 |
| Payload | 40g |
| Operating Temperature Range | Flight Temperature: -5 to 60°C |
| Headlight | 2 units: Total 380 lm / 5-level dimming |
| Angle of View | Vertical: 80.1° Horizontal: 131.0° Diagonal: 143.9° |
| Resolution | 1920×1080 |
| Image sensor | STARVIS 1/2.8 type |
| Accessories | Complete control equipment set (including extension antenna) |
*For the rental plan, a wireless station license application for video transmission is required before use. (Not required for the inspection service plan)
*Operator dispatch cannot be added to the rental plan. (Please request via the inspection service plan)
