Act Base
A versatile aluminum stage offering superior workability, functionality, and maintenance.
- Certification
- Machine number management product
Features
-
They can be stacked during transport and storage, helping to reduce costs and save space. -
Equipped with casters for easy mobility. Its compact size ensures smooth movement even in tight spaces. -
Using connecting bridges allows for efficient stage expansion.
(Connecting bridge = yellow section)
- Lightweight at approximately 56 kg
- Simple structure for easy assembly and storage
- Expandable with connecting bridges

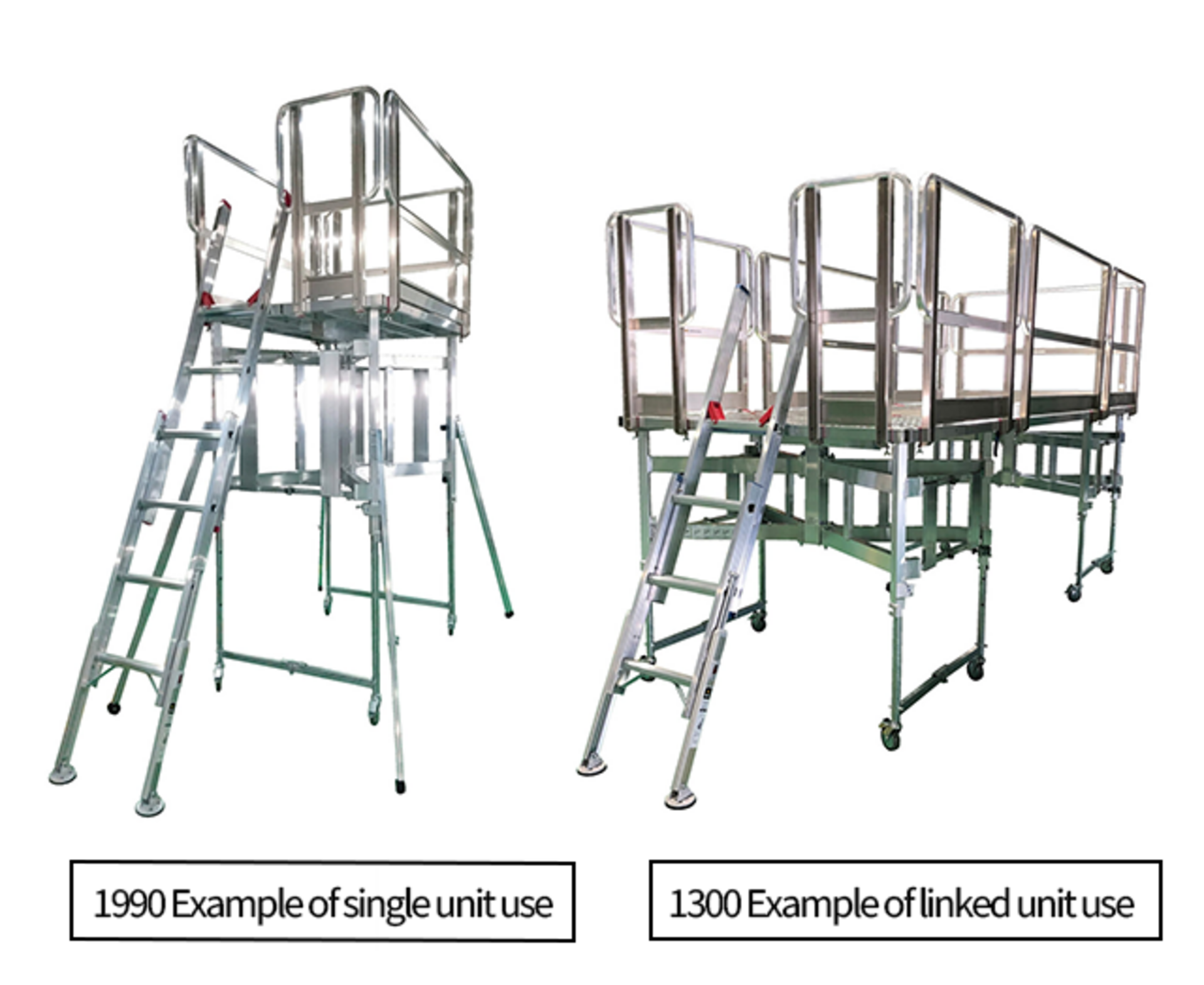

- Units can be linked together
Specifications
Act Base Unit
| Model | 1990 | 1300 |
|---|---|---|
| Working Floor Dimensions: Width (mm) | 1,005 | 1,005 |
| Working Floor Dimensions: Length (mm) | 1,500 | 1,500 |
| Working Floor Height (mm) | 1,300–1,990 | 900–1,300 |
| Adjustable range (mm) | 150 | 130 ・ 140 |
| Storage Dimensions (Single Unit) Width mm | 1,631 | 1,631 |
| Storage Dimensions (Single): Length (mm) | 242 | 242 |
| Storage Dimensions (Single Unit) Height mm | 1,352 | 952 |
| Mass (kg) | 56.1 | 48.9 |
| Max load kN(kgf) | 1.47 (150) | 1.47 (150) |
Act Base Optional Parts List
| Model | Manual 1500 | Manual 1000 | Manual 500 | Connecting Bridge | Outrigger for 1990 | Ladder for 1990 | Ladder for 1300 |
|---|---|---|---|---|---|---|---|
| Storage dimensions Width mm | 1,500 | 1,005 | 500 | 500 | - | 545 | 545 |
| Storage Dimensions: Length mm | - | - | - | 1,602 | 1,045 | 1,864 | 1,529 |
| Storage dimensions Height mm | 970 | 970 | 970 | - | - | - | - |
| Weight kg | 3.8 | 3.2 | 2.5 | 8 | 2 | 8.7 | 7.6 |
