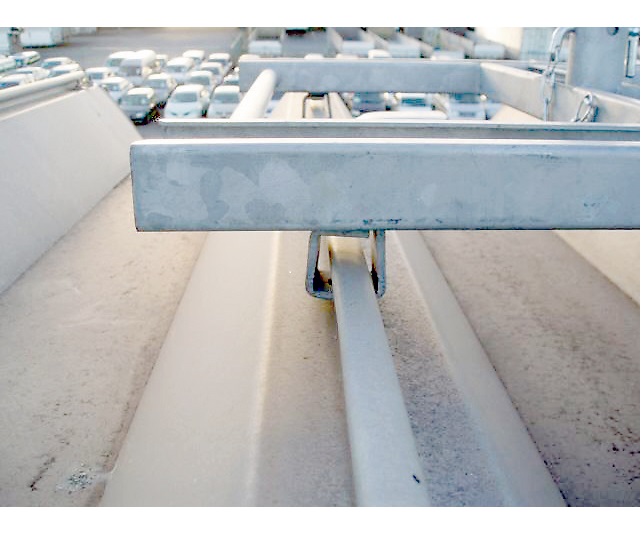

Fall Prevention Posts for Metal Folded Plate Roof
Prevents falls from eaves, verges, and openings.
Features
-
Base pitch is 400 to 600 mm -

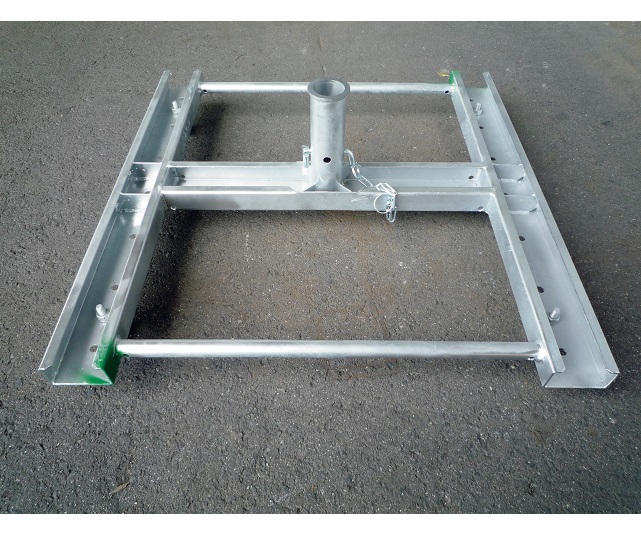

Fixed to the roof using 4 metal fittings -

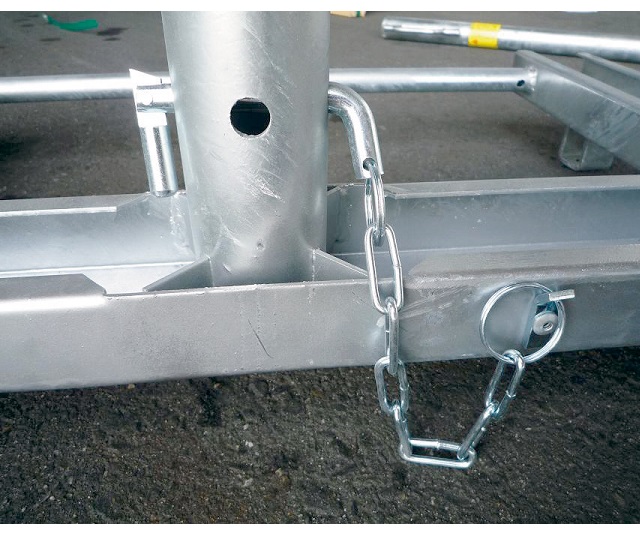

The post and base are fixed with toggle pins
- Can be used as safety belt attachment equipment.
- A single pipe can be attached to the support, so it can also be used as a handrail post.
- Easy to install on the roof with an impact wrench.
- The base and support can be separated, making it easy to transport and store.
Specification
Fall Prevention Posts for Metal Folded Plate Roof
| External dimensions width (mm) | 680 |
|---|---|
| External dimensions length (mm) | 700 |
| External dimensions height (mm) | 1,060 |
| Mass (kg) | 11.5 |
| Applicable folded plate roof pitch mm | 400・450・500・550・600 |
| Plate thickness mm | 0.6～1.2 |
