Double FRP ladder
Handling Locations
*Click to go to Locations page
Double FRP ladder
FRP ladder with excellent electrical resistance. For work in places where insulation is required, such as electrical work and installation work.
Since it is insulated, it can be used when going up and down at electrical work sites.
Features
-

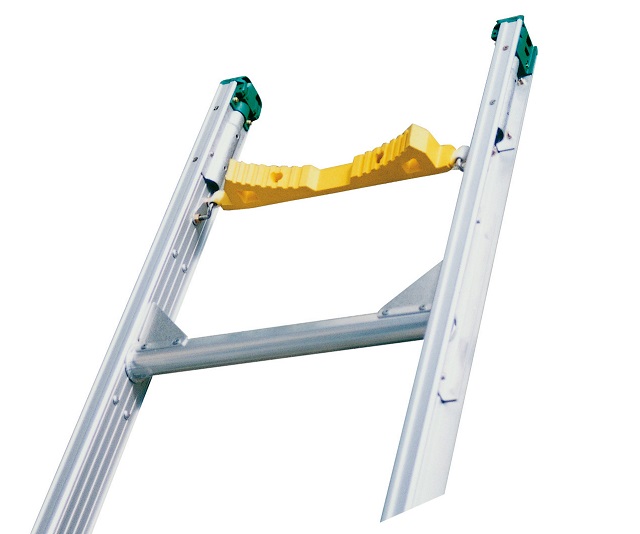

The utility pole holding belt stabilizes the work of raising and lowering the cylinder. -

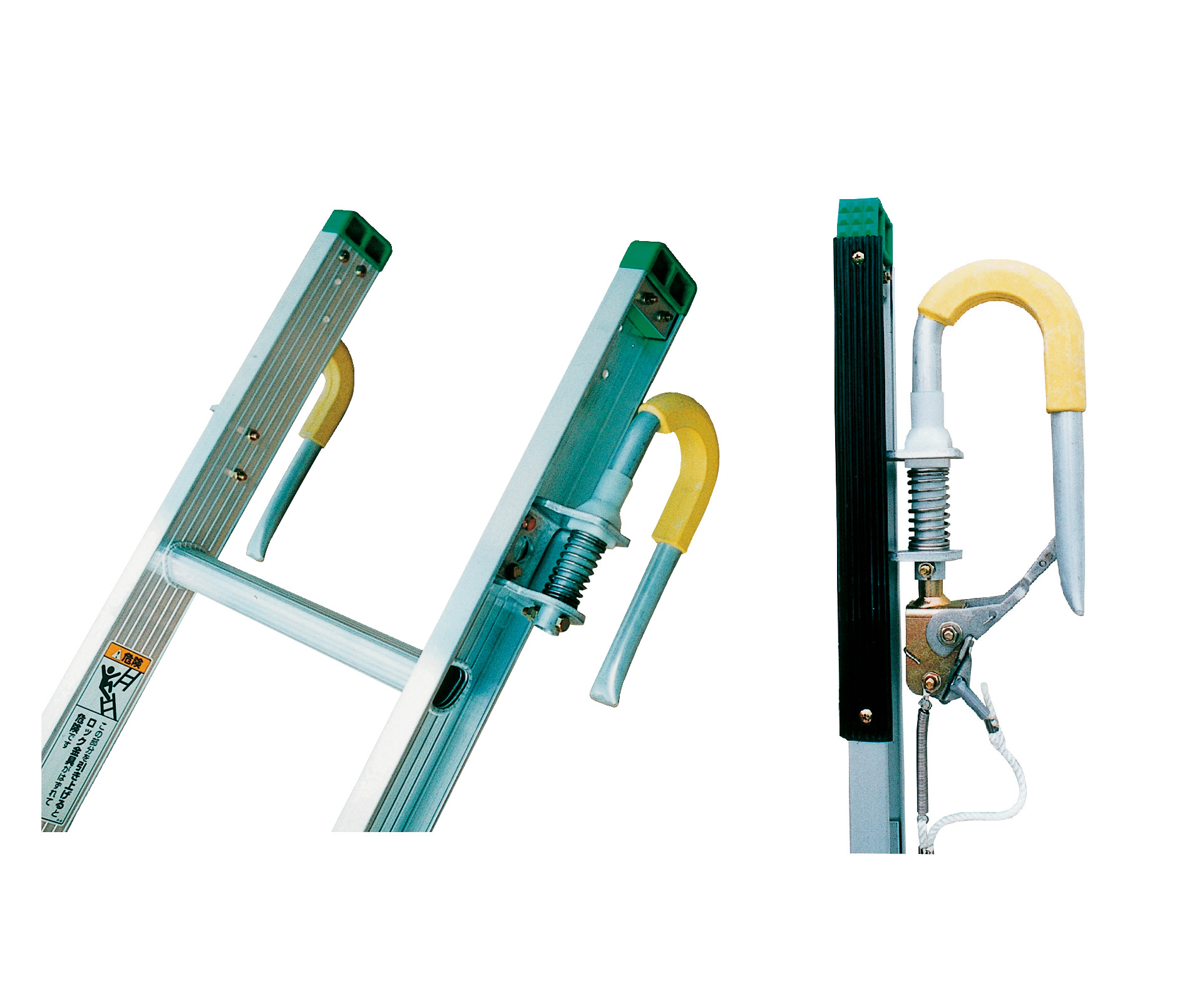

Comes with a hook fitted with rubber to provide insulation during overhead line work.
A device to prevent it from coming off the overhead wire is also standard equipment.
Specification
Double FRP ladder 8M 2-81GF
| Total length mm | 4,780～8,100 |
|---|---|
| Step width (mm) | 35 |
| Step spacing mm | 328 |
| Ladder external dimension mm | 416 |
| Mass (kg) | 22.7 |
| Max load kN(kgf) | 1.27(130) |
