Alwalk
Can be installed on slopes and walls. Scaffolding brackets versatile enough for various job sites.
Aluminum bracket for vertical and inclined surface temporary scaffolding. Easy to carry and safe to install.
Handrails can also be easily installed using "handrail posts" and "single pipes".
- NETIS Registered Products
Registration Number: KKK-170004-VE
Features
-

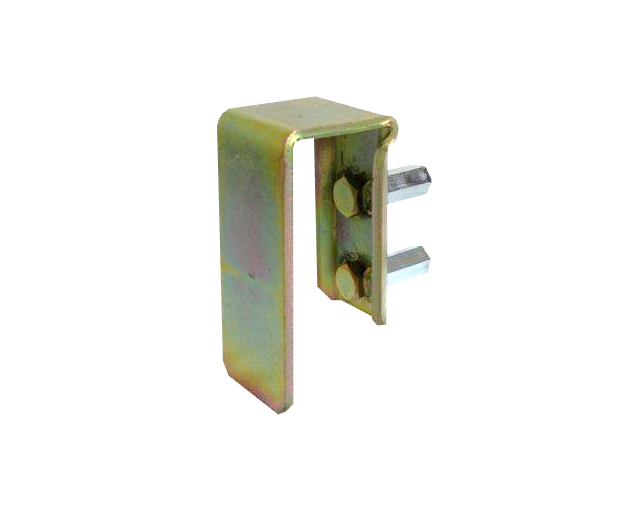

■Hook for Square Timber
Compatible with 60 square timber -

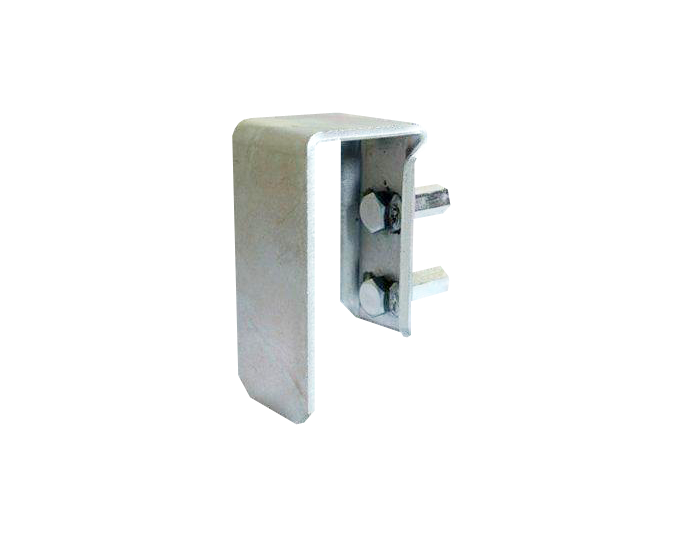

■Hooks for Single Pipes
Compatible with 48.6φ single pipes and 50-square balks
- Supports anything from vertical walls to slopes with an approximate 1:10 batter
- Made of aluminum to resist rust and degradation, and lightweight at 4.3 kg for easy transport.
- The hook can also be removed to attach directly to the concrete body.
- The main unit is foldable, helping to reduce storage space and transportation costs.
- Awarded the highest NETIS rank, "VE Evaluation". *VE = Technologies evaluated for practical utility.
Example of use
-

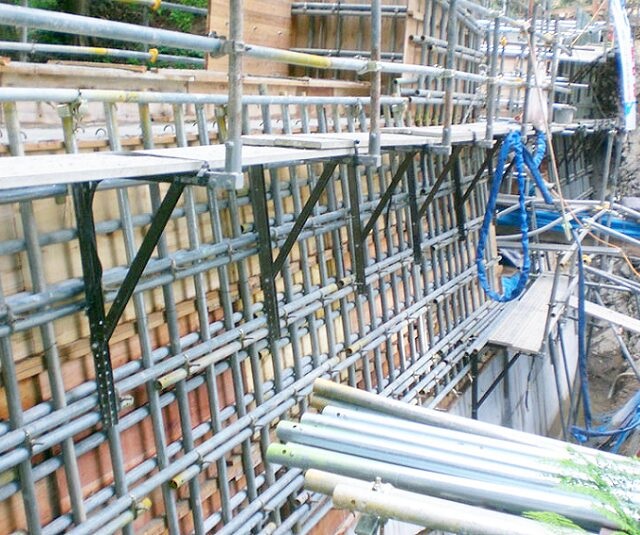

Using hooks for single pipes -

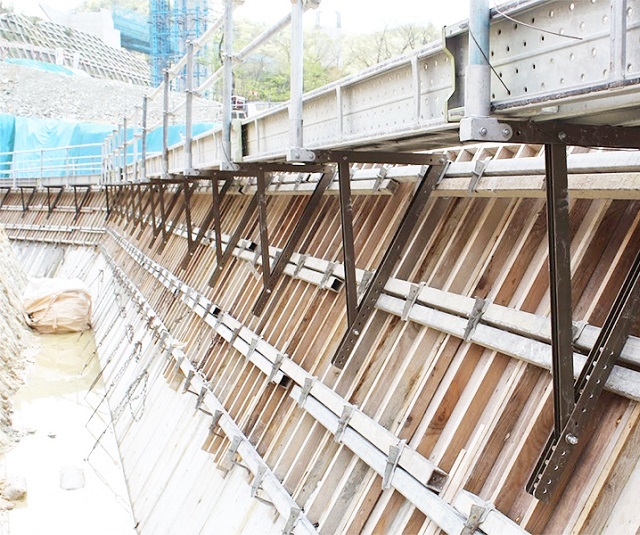

Example of using a square timber hook
Specifications
Alwalk
| Model | AWBN-FNA (Without Hook) | AWBN-FCA (for single pipes) | AWBN-FSA (for square timber) |
|---|---|---|---|
| Weight (kg) | 4.3/unit | 5.3/unit | 5.4/unit |
| Allowable Load kN (kgf) | 1.96(200) | 1.96(200) | 1.96(200) |
Options
-
Handrail PostAWBN-T1.0
●Specification: 1.0M
●Weight (kg): 1.7
-
Single Pipe
●Size: 1.5M / 2.0M / 3.0M / 4.0M
