Allock Carry / Four-Wheeled Aluminum Dolly

Approximately 50% lighter than pipe trucks, making it convenient for transporting construction materials and heavy objects.

Ideal for transporting materials and heavy objects on-site. The equipment itself is lightweight and convenient.
We offer a 1.5t specification that increases the load capacity to 1,500 kg while maintaining the size of the Allock Carry, as well as a 4-wheel caster specification with a load capacity of 1,000 kg.
It allows for smooth parallel movement across obstacles between the wheels.
The "Alhavo" option, which can be used as a box cart, is also available.

Features

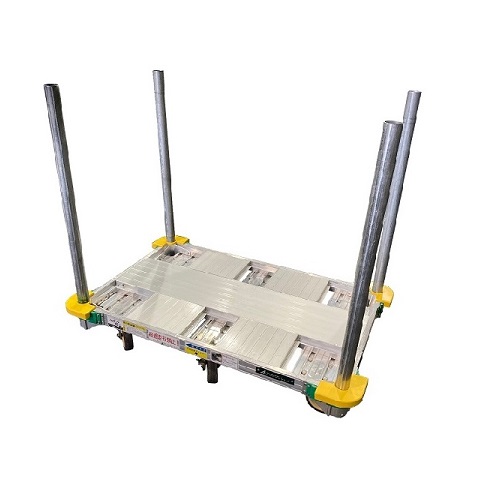

Single-wall pipes are installed at the four corners. (Please order the single-wall pipes separately.)

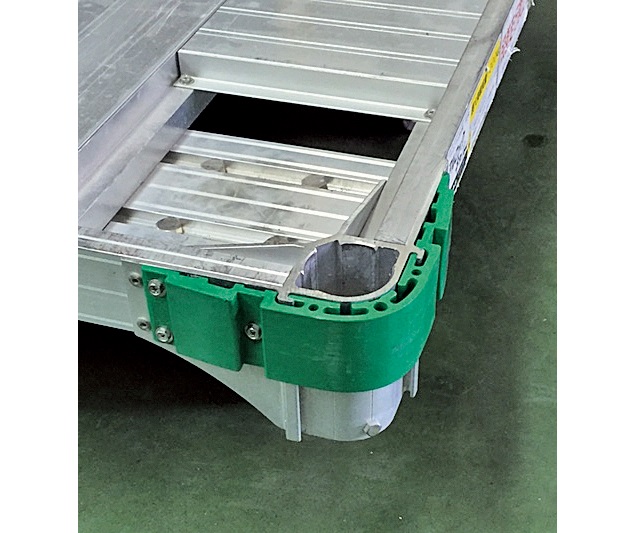

The plastic corner guards absorb the impact in the event of a collision. (
Allock Carry
Four-Wheeled Aluminum Dolly = Green / 1.5-metric-ton Model = Sky Blue /
Allock Carry 4-Wheel = Black)

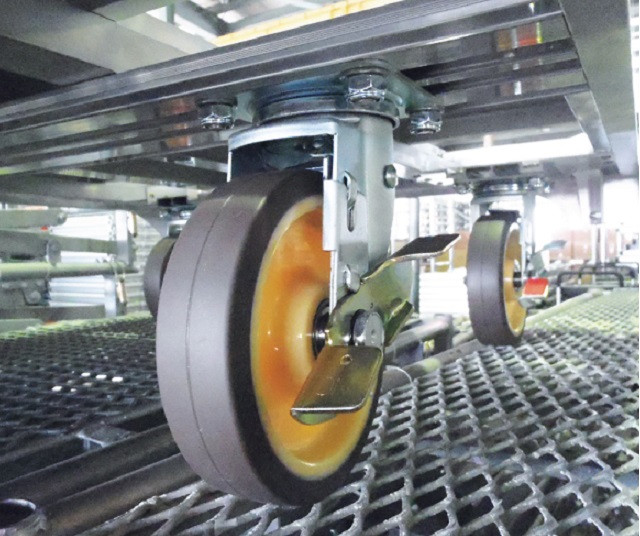

Center: Rotation stopper (swivel lock)
By releasing the lock, it can also function as a universal caster, allowing free movement both forward and sideways.
*When stacking, please release the rotation stopper, turn the wheels outward, and fit them into the grooves.

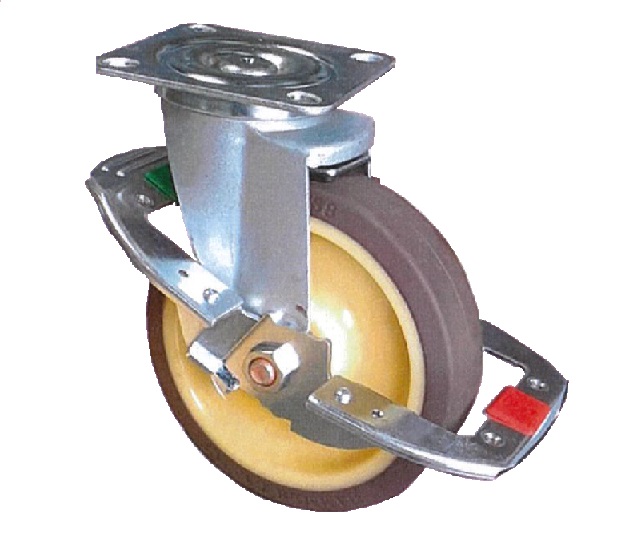

Egg Pedal Casters

Featuring enhanced pedal visibility, these innovative casters allow you to lock and release the brakes with your foot from any direction.
It can be used as a box cart by combining it with the optional Albo.
It can be used interchangeably as a standard transport cart or as a lockable security box cart.

Specifications

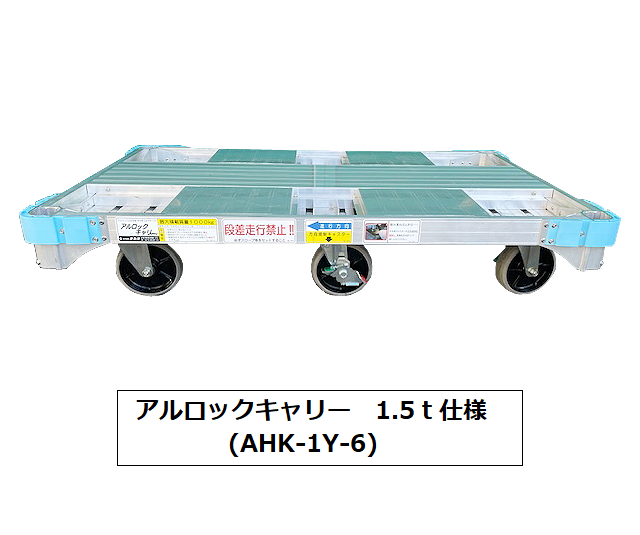

Allock Carry 1.5t specification AHK-1Y-6

External dimensions width (mm)	775
External dimensions length (mm)	1,230
External dimensions height (mm)	250
Mass (kg)	29.0
Max load kN(kgf)	14.7(1500)

Allock Carry 4-Wheel AHK-1Y-4

External dimensions width (mm)	775
External dimensions length (mm)	1,230
External dimensions height (mm)	250
Mass (kg)	24.9
Max load kN(kgf)	9.8 (1,000)

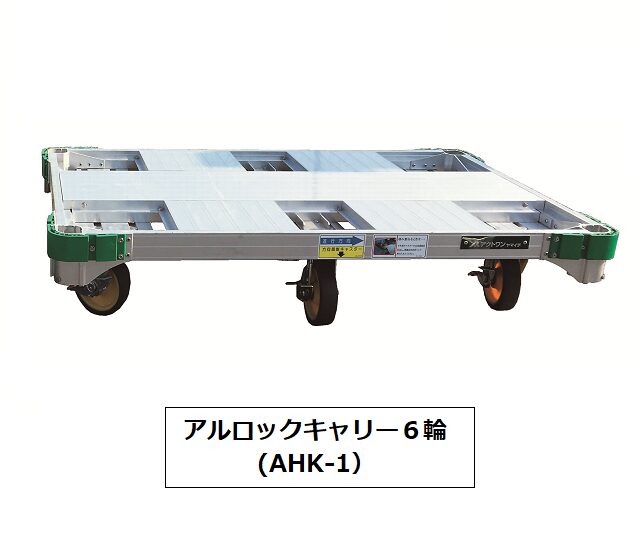

Allock Carry AHK-1

External dimensions width (mm)	775
External dimensions length (mm)	1,230
External dimensions height (mm)	250
Mass (kg)	28.0
Max load kN(kgf)	9.8 (1,000)

AHK-2 Four-Wheeled Aluminum Dolly

External dimensions width (mm)	775
External dimensions length (mm)	775
External dimensions height (mm)	250
Mass (kg)	20.5
Max load kN(kgf)	7.84(800)

Allock Carry Egg Pedal Specification AHK-1E

External dimensions width (mm)	775
External dimensions length (mm)	1,230
External dimensions height (mm)	250
Mass (kg)	29.4
Max load kN(kgf)	9.80 (1,000)

Options

Allock Carry Connecting Fitting2-Way Connecting Fitting

Depending on your needs, you can attach an Allock Carry Four-Wheeled Aluminum Dolly.

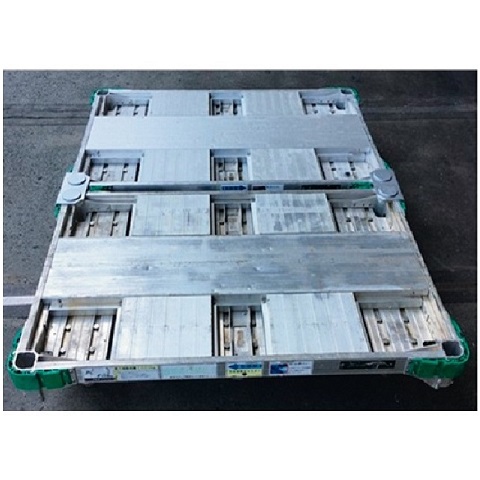

Example of use for 2-way connection fitting

Allock Carry × 2
2-Way Joint Fitting × 2

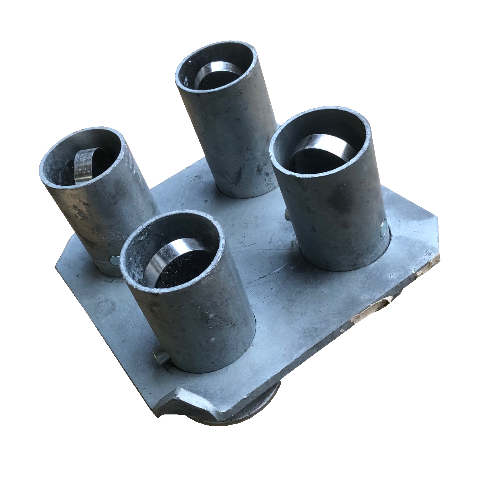

Allock Carry Connection Hardware4-Link Fitting

Depending on your needs, you can attach an Allock Carry Four-Wheeled Aluminum Dolly.
Example of use for 4-Link Fitting

Allock Carry x4
2-Way Joint Fitting x4
4-Way Joint Fitting x1

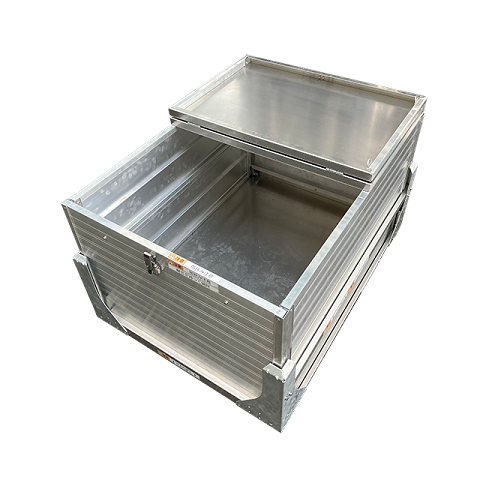

AlhavoACB-1

Can be used in combination with the Allock Carry as a box cart.
The box can also be used on its own.
It can also be used in combination with other optional accessories, such as connecting brackets and corner guards.
● Dimensions = Width × Length × Height (mm)
　: 740 × 990 × 530
● Storage Dimensions = Width × Length × Height (mm)
　: 740 × 990 × 340
● Weight (kg): 28.5
*Anti-theft brackets are also available
(Sold separately)

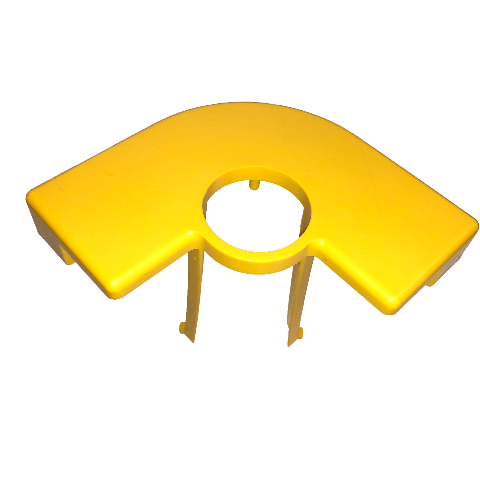

Corner Guard Plus (For Sale)CGP

To prevent hand trapping when using aluminum hand trucks and to cushion impacts during contact.
Corner Guard Plus 2 NEW CGP2

Prevents hand pinching when using aluminum carts and cushions impact during contact.
Can be attached and detached with a single pipe inserted.
