Air Base Mini
A safe work platform where four-directional sensing locks prevent falls without narrowing the scaffolding space.
・Sensing locks are integrated with the handrail and require no removal. Highly compact for storage.
・Main frames can be opened and closed with a foot-release lock for easy one-touch operation.
・Recommended for use in confined spaces or as a simple platform for stepping over obstacles.
- Machine number management product
Features
-
■Stowed State
The sensing rod and handrail are integrated, allowing it to be folded as is. -

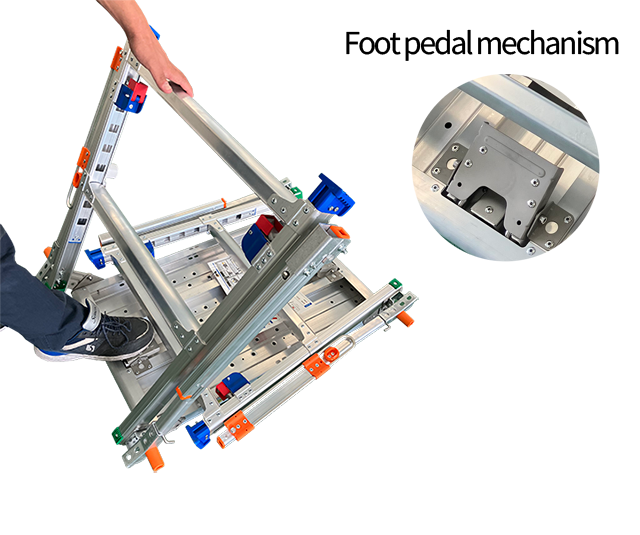

■Unlocking the Main Legs
Foot pedal operation reduces strain on the lower back
Example of use
-
When storing handrails -
When deploying handrails -
When using side-girder safety guards
Specifications
Air Base MiniCSJ10MTRU
| Top panel dimensions: width (mm) | 500 |
|---|---|
| Top panel dimensions: length (mm) | 795 |
| Top panel height (mm) | 730-1,080 |
| Handrail height mm | 570 |
| Adjustable range (mm) | 50 |
| Step width (mm) | 55 |
| Mounting dimensions width (mm) | 688–762 |
| Mounting dimensions length (mm) | 1,340-1,541 |
| Storage dimensions width (mm) | 761 |
| Storage dimensions length (mm) | 855 |
| Storage dimensions height (mm) | 219 |
| Mass (kg) | 16.0 |
| Max load kN(kgf) | 1.47(150) |
Options
-
Air Base Mini OutriggerCSGG10
Please use this to prevent tipping.
●Dimensions = Length(mm): 710-1,120
●Weight(kg): 2.5
