Act Slope / Act Slope Mini
The ultimate adjustable step-difference board. Eliminate step differences to streamline on-site work.
Its lightweight design makes it easy to carry around to eliminate minor steps and differences in level on-site.
A wide range of optional accessories further expands the usage scenarios for the Act Slope.
Features
-
Level adjustments can be made anywhere within the effective width!

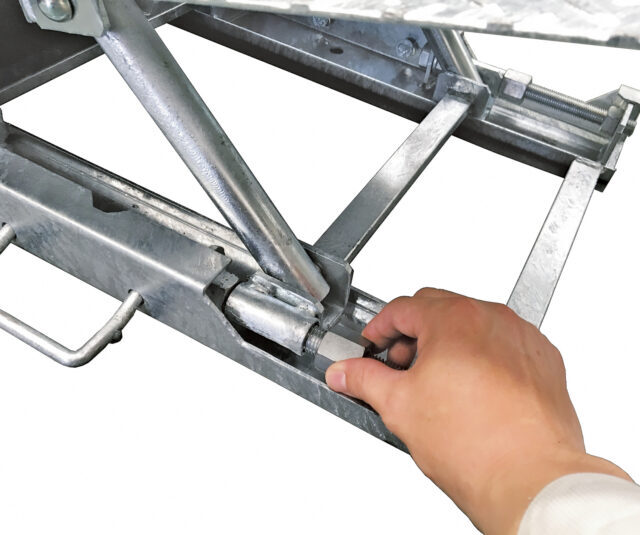

Fine-tuning is easy with no tools required!
(Act Slope) -

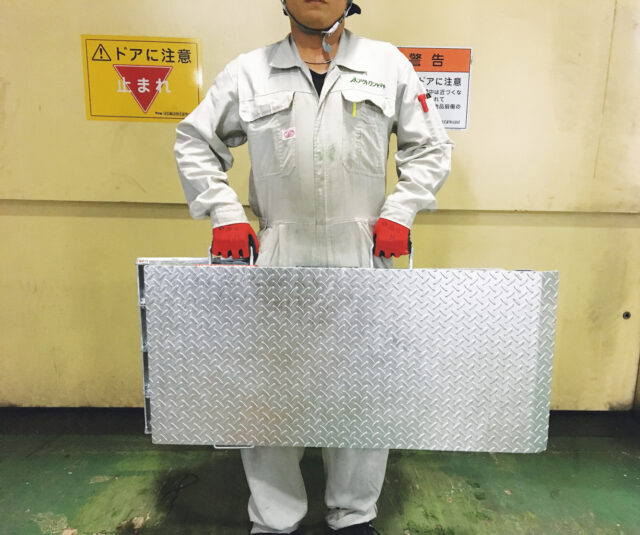

Lightweight design at 4.5 kg (weight) with steel material
Features convenient handles for easy transport
(Act Slope) -

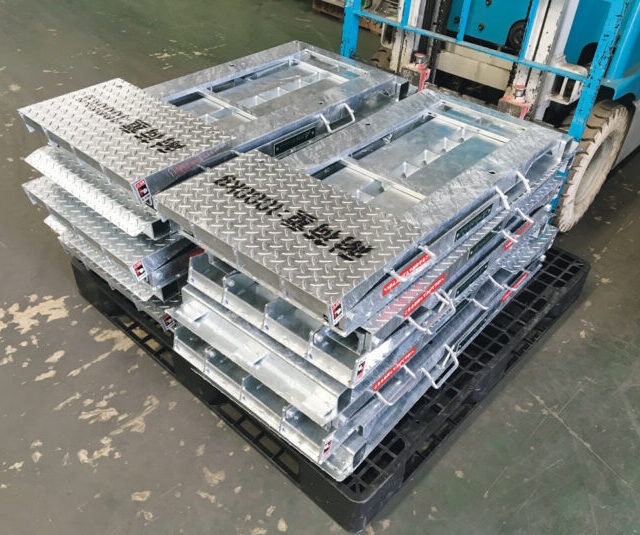

Foldable and easy to carry
*Do not use in the folded state.
（Act Slope） -

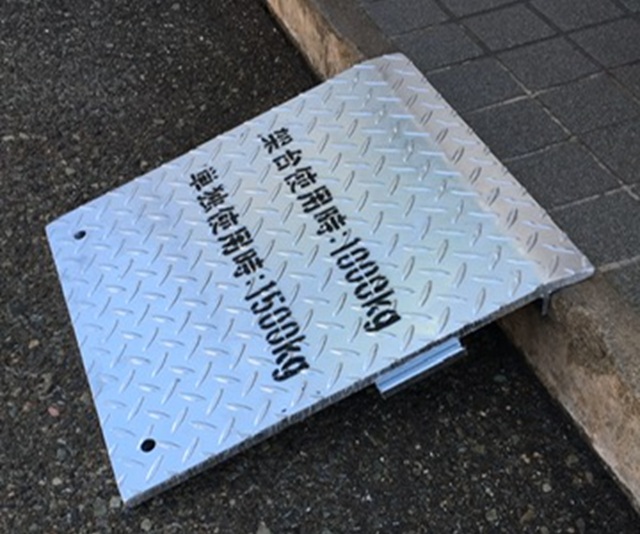

For eliminating minor steps
Step height range: 30 to 100 mm
(Act Slope Mini) -
A wide range of options for various uses

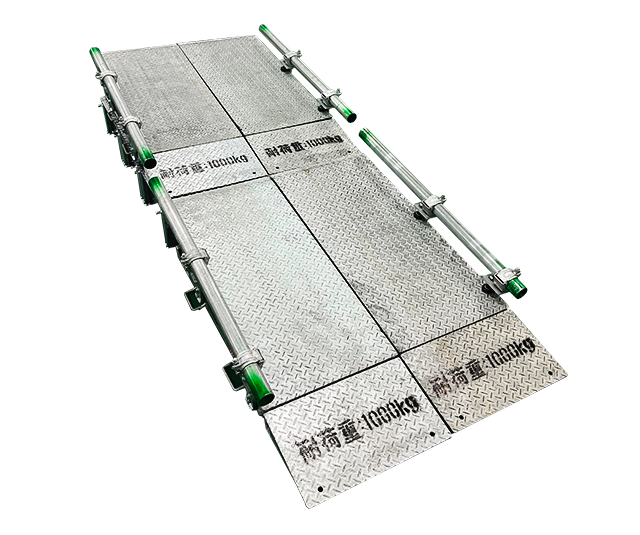

Here is an example of how to install the optional guard clamp and Dedicated Stand.
Specifications
Act Slope
| Width mm | 450 |
|---|---|
| Length (When Set Up) mm | 1,250 |
| Length (Stored) mm | 1,020 |
| Working Height mm | 100–250 |
| Mass (kg) | 45 |
| Max load kN(kgf) | 9.80 (1,000) |
Act Slope Mini
| Width mm | 450 |
|---|---|
| Length (When Set Up) mm | 492.9 |
| Length (Stored) mm | - |
| Working Height mm | 30–100 |
| Mass (kg) | 23 |
| Max load kN(kgf) | 9.80 (1,000) |
Options
-
Dedicated Mounting Bracket for Act Slope
3 units are required when placing the slope body on the scaffolding.
Connect the scaffolding with side pins and secure the body using insertion pins.
(Specifications)
・Width × Length (when installed) mm: 400×450
・Operating height mm: 200
・Mass kg: 10.4
・Allowable load kN(kgf): 9.80(1,000) -
Act Slope Support Frame
Used in combination with a dedicated platform, it eliminates height differences of up to 750 mm.
(Specifications)
・Width × Depth × Height (mm): 1,236 × 420 × 50
・Weight (kg): 7.6
・Allowable Load kN(kgf): 9.80 (1000) -

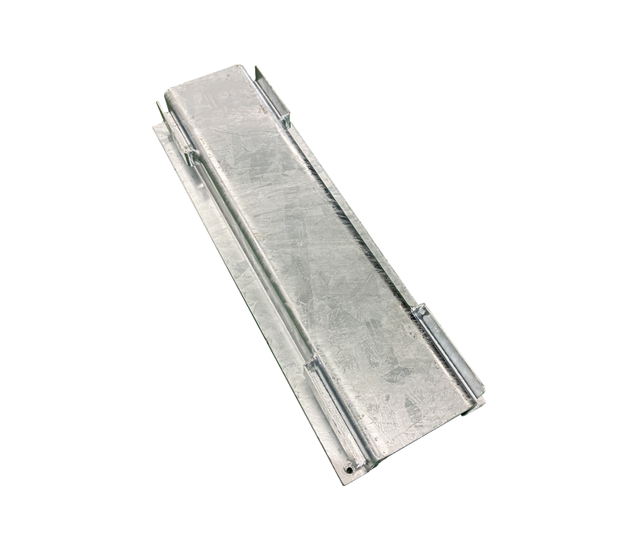

Wiring maze scaffolding
Exclusively for Act-Slope Mini.
Can be easily installed without tools.
(Specifications)
・Width × Depth × Height (mm): 450 × 148 × 50
・Weight (kg): 5.1
・Allowable Load kN(kgf): 14.7 (1500) -
Act Slope Telescopic Scaffolding Pipe Support [NEW]
This scaffolding platform spans pipes up to 300 mm in diameter. The leg height is adjustable in four stages.
When combined with the Act Slope and dedicated scaffolding set (accommodating level differences from 300 to 450 mm), it can be used as a pipe-crossing slope.
(Specifications)
・Width × Length (Plank) mm: 450 × 400
・Height (External dimensions) mm: 300・350・400・450
・Weight kg : 22
・Allowable Load kN(kgf) : 9.80 (1,000)
-

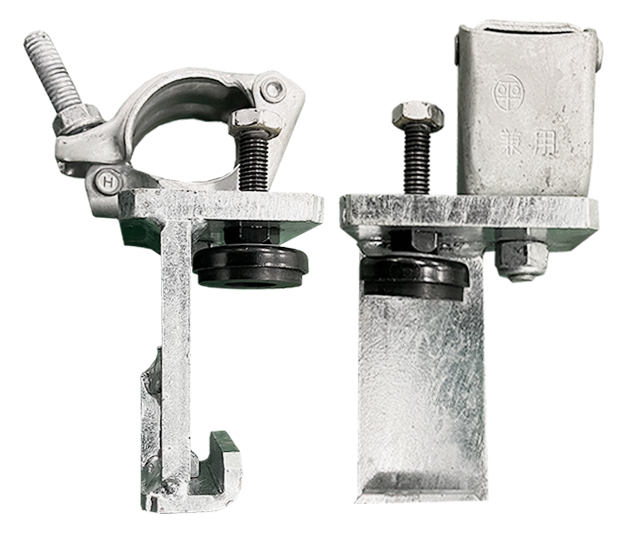

Guard Clamp for Act Slope [NEW]

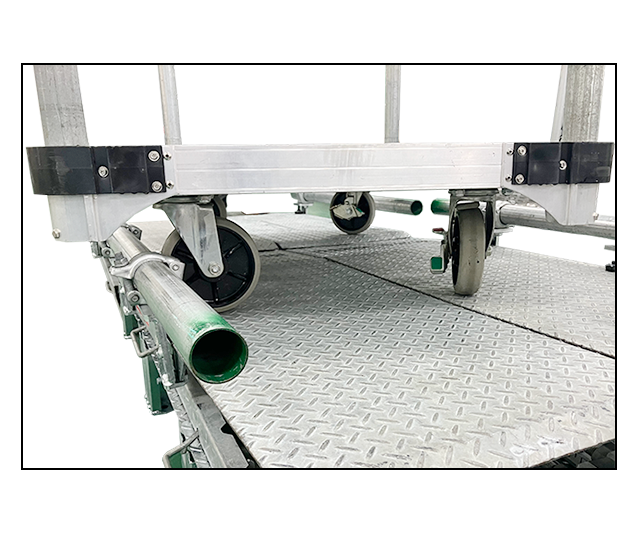

This is a clamp to prevent derailment.
Secure it at two points on the side of the slope (one side) and attach a single pipe.
(Specifications)
・Weight kg: 1.3
●Example 1: Step height 600mm to 750mm
Act Slope Units ×3, Dedicated Stands ×9, Auxiliary Stands ×3 *The photo shows one set. Please arrange multiple sets side by side for use.
[Applicable step height range and required equipment/quantity]
・Step height range: 300 to 450 mm
Required equipment/quantity: Act Slope × 2, Platform × 3
・Step difference coverage: 230 to 300 mm
Required equipment and quantities: Act Slope × 1, Platform × 1, Act Slope Mini × 1
・Step-difference support range: 100 to 250 mm
Required materials and quantities: Act Slope × 1
・Step height adjustment range: 30 to 100 mm
Required materials and quantity: Act Slope Mini x 1
●Example 2
Act Slope Mini Units ×4, Cable Bridge Brackets ×2 *The photo shows two sets.

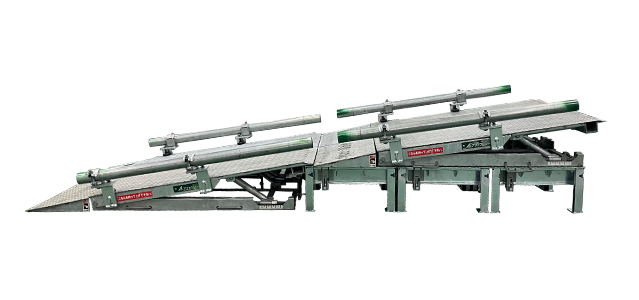

●Example of use 3
Act Slope unit x4, dedicated stand x6, guard clamp set x4
