Voltina
Voltina
Steel frame final tightening bolts, etc. can be lifted by crane while still on the wooden Pallet without the need for reloading
Features
-

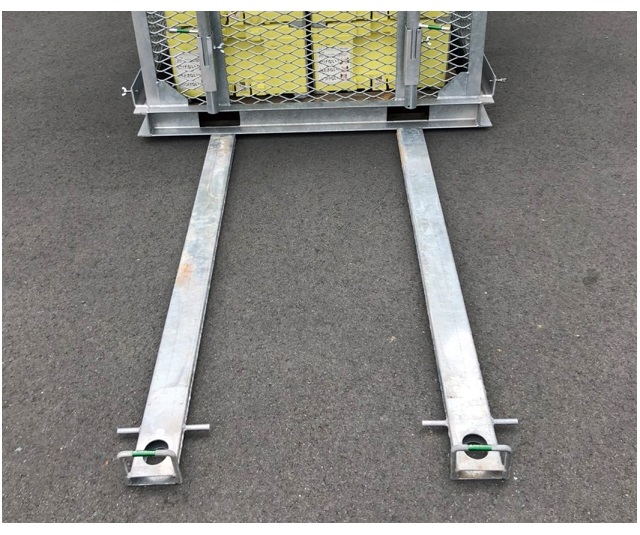

Place Voltina over the wooden Pallet, insert Pallet together and thread the tabs through to the other side. -

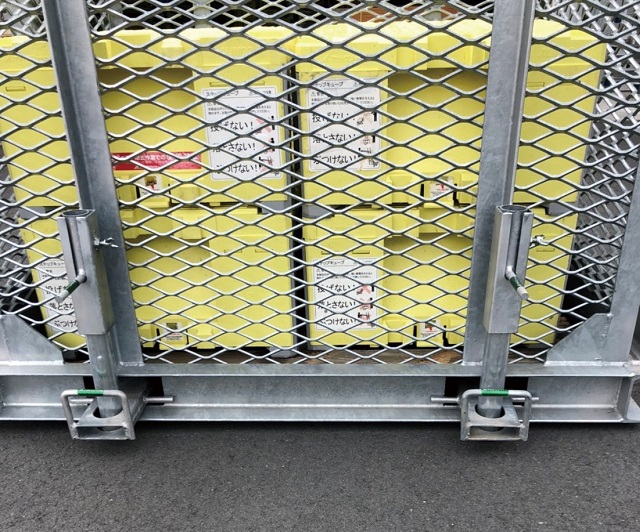

Next, set the retaining pin. -

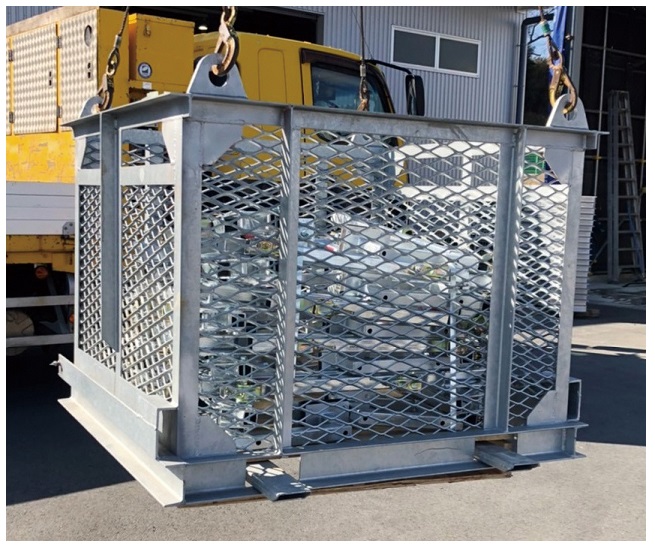

Lift it up. (Hanging piece hole diameter = Φ40)
- Use wooden Pallet smaller than 1100 x 1200.
- Be sure to use 4-point suspension when lifting.
- Be sure to insert the insertion tab all the way in and set the retaining pin.
Specification
Voltina
| External dimensions width (mm) | 1,300 |
|---|---|
| External dimensions length (mm) | 1,200 |
| External dimensions height (mm) | 950 |
| Pallet inner dimensions Width mm | 1,200 |
| Pallet inner dimensions Length mm | 1,100 |
| Pallet inner dimensions Height mm | 850 |
| Mass (kg) | 180 |
| Max load kN(kgf) | 9.80(1,000) |
