Telescopic Ladder
5.9M size LS-59 is now available
It can be stored compactly and even be loaded into a passenger car!
- Machine number management product
Features
-

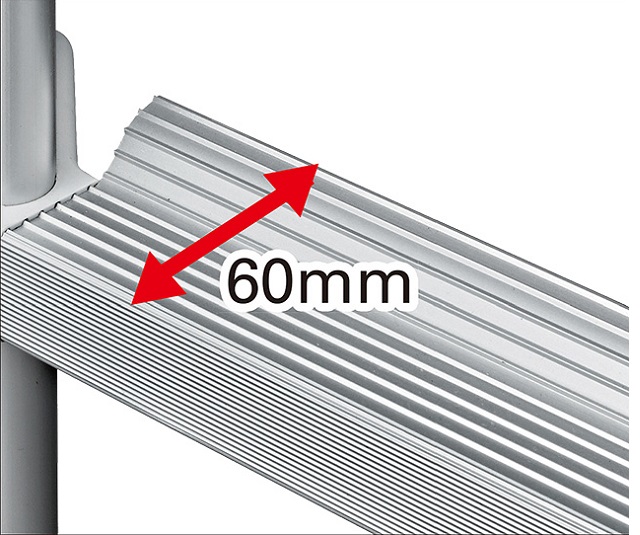

Safe ascending and descending with wide steps (LS type) -

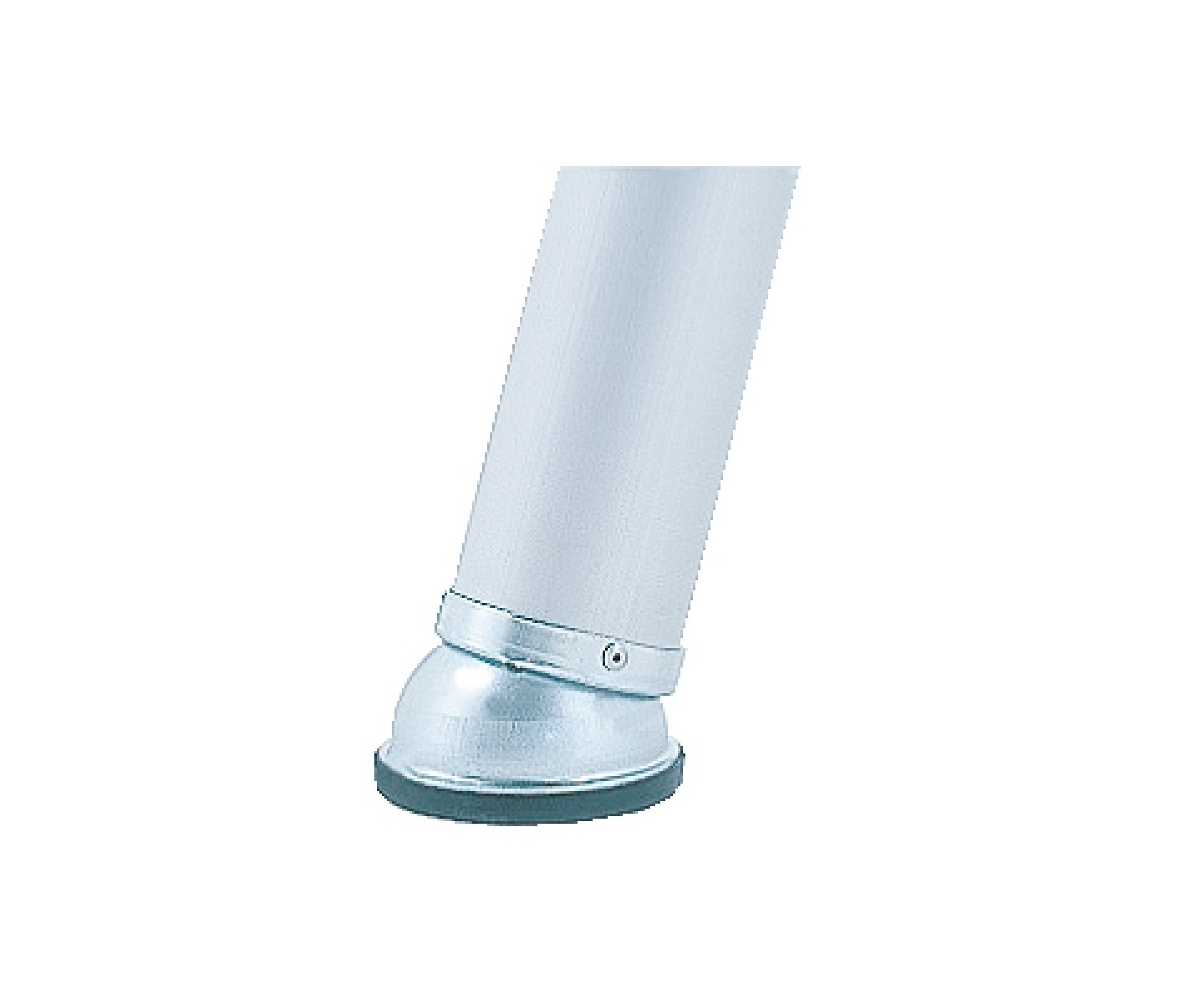

Flexible leg type that can change direction 360° (SL type) -

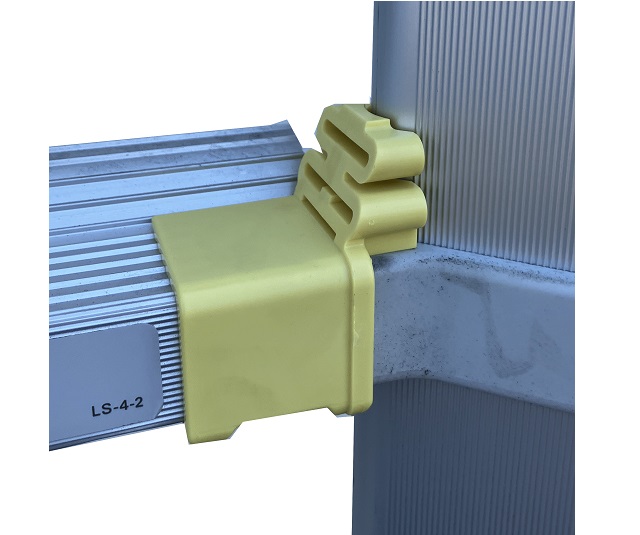

Equipped with finger jam prevention material on each tier (common)
*Photo shows LS-59 -

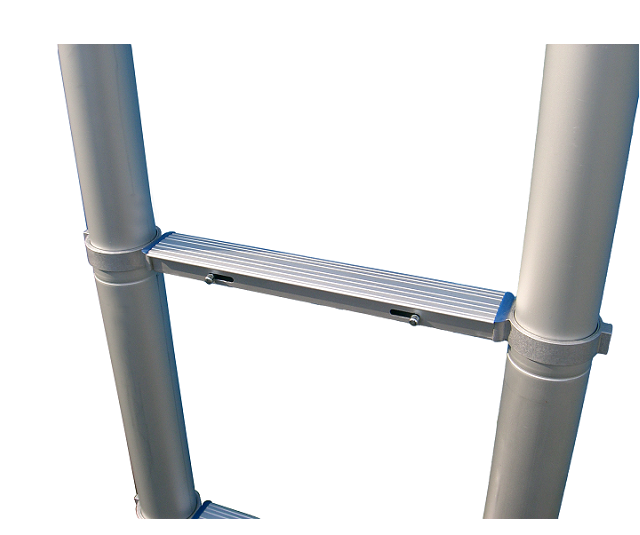

Locking and releasing of expansion and contraction is possible for each stage (common)
*Photo shows SL-500 -
Items will be shipped with a handling caution sign (common) -

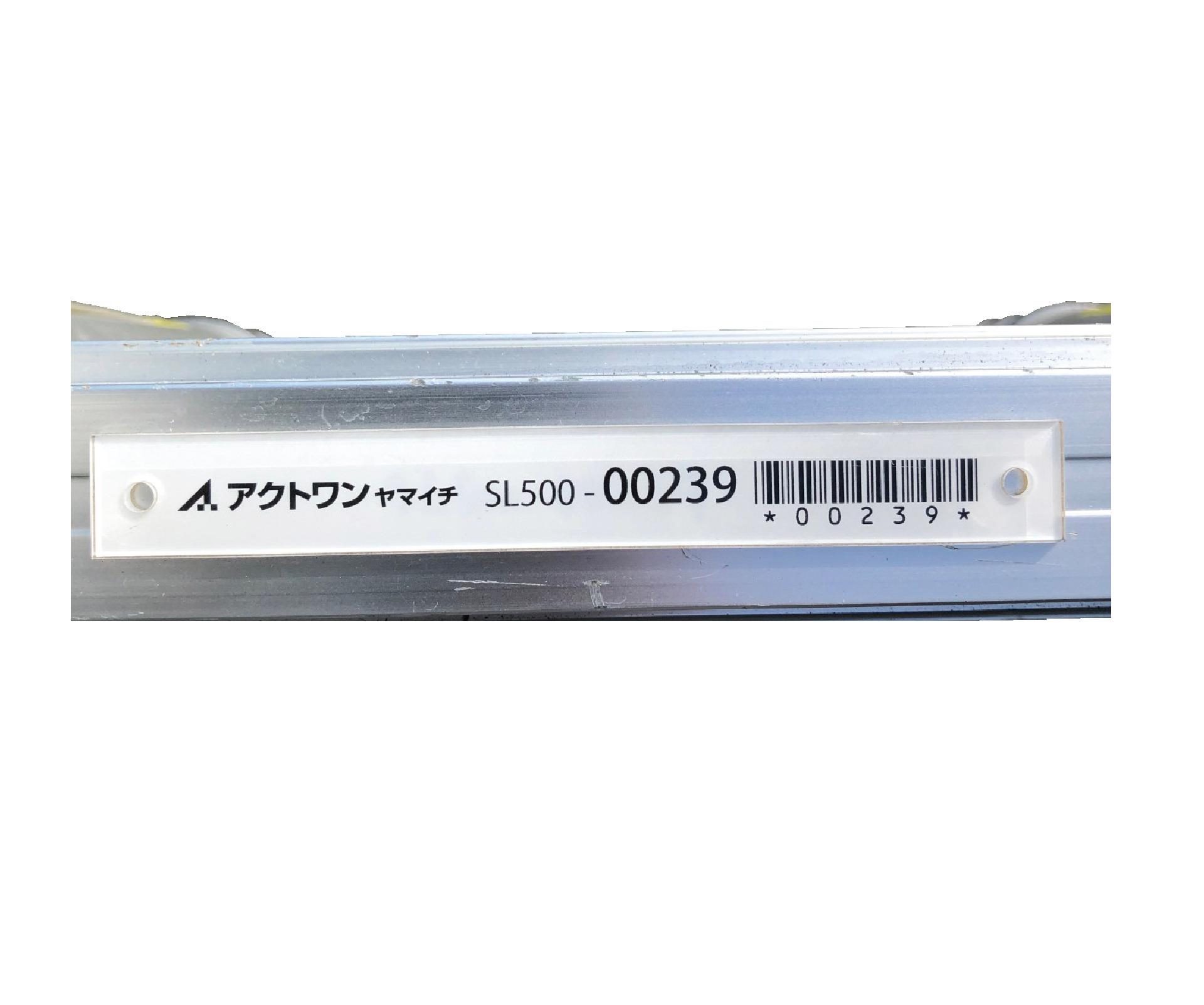

The machine number is attached to the back of the bottom step (common)
- You can even take it up stairs or into small spaces!
- Expandable type for convenient storage and carrying!
- Can be used at any height!
- We manage the machine number.
Specification
Telescopic Ladder
| Model | 5M SL-500J | 5M LS-49 | 6M LS-59 |
|---|---|---|---|
| Total length mm | 1,180~5,220 | 1,311~4,880 | 1,455～5,870 |
| Storage dimensions width (mm) | 495 | 580 | 600 |
| Storage dimensions depth mm | 80 | 133 | 133 |
| Storage dimensions height (mm) | 1,180 | 1,311 | 1,455 |
| Mass (kg) | 16.4 | 19.5 | 25.8 |
| Max load kN(kgf) | 0.98(100) | 0.98(100) | 0.98(100) |
*Sapporo office only handles LS type.
Related Equipment
Single Ladder
We offer single ladders and double ladders in a variety of sizes for lifting work on site.
Hanging ladder for manhole 4.5M
This is a special ladder that can be easily installed when going up and down inside a manhole, and it can also be stored, making it easy to carry.
Double FRP ladder
Since it is insulated, it can be used when going up and down at electrical work sites.
