Truck Elevation Step
Installation of truck loading and unloading safety equipment becomes mandatory from October 1, 2023, to prevent falls and jumping down from truck platforms
・Models with handrails have been added to the lineup
・Attached to the truck's tailgate to assist with getting on and off
・Provides a stable workspace on the truck bed
Features
-

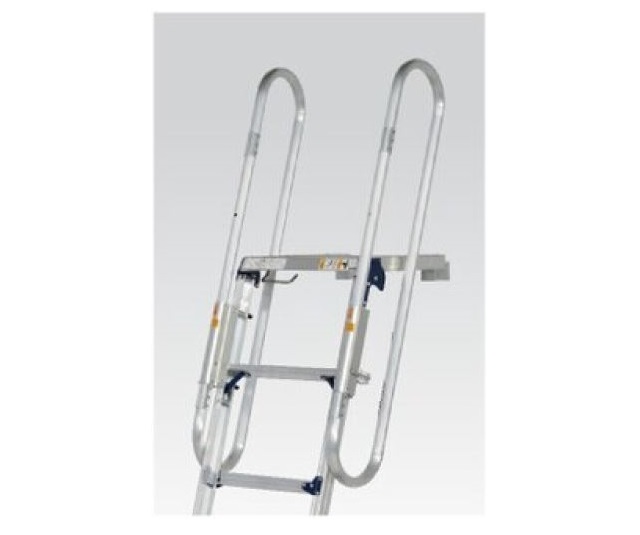

● Two handrail mounting directions (DXF-14TEA)
Handrails can be configured based on your operating environment. -

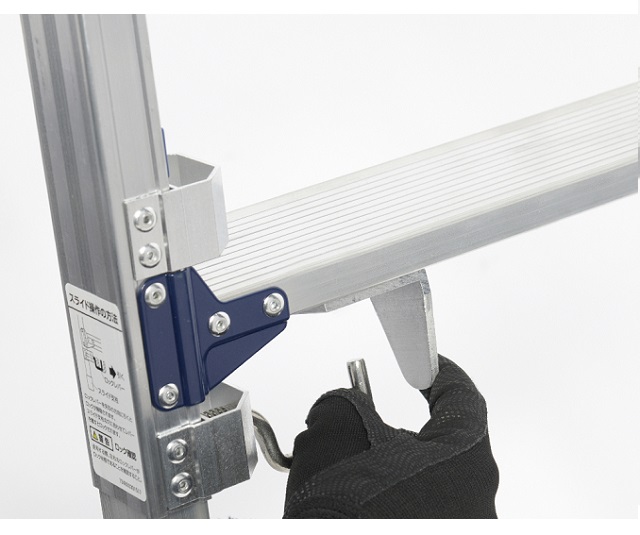

● Telescopic operation lever (DXF-14TEA)
Features a grip for easy operation. -

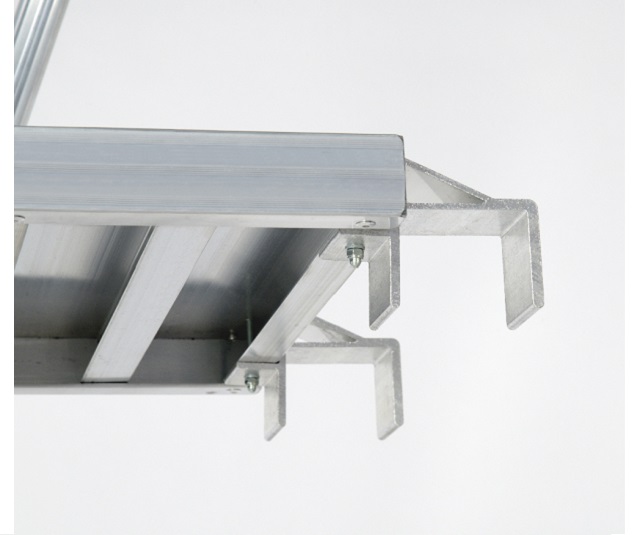

● Folding hook (DXF-14TEA)
Accommodates tailboards up to 63 mm thick. -

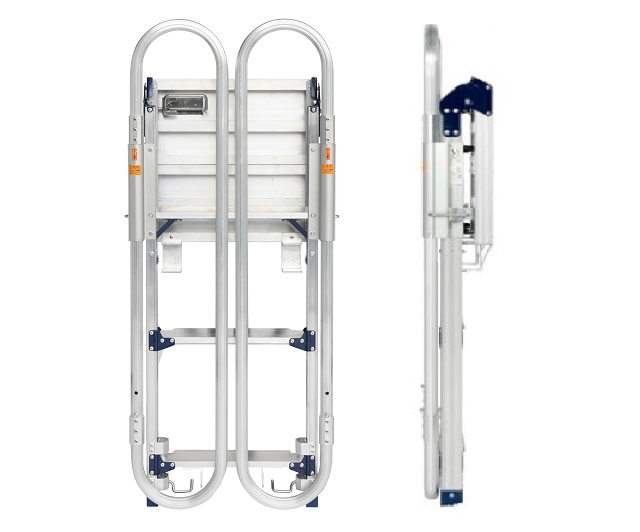

● Compact storage (DXF-14TEA)
Integrated handrails allow for neat, compact folding. -

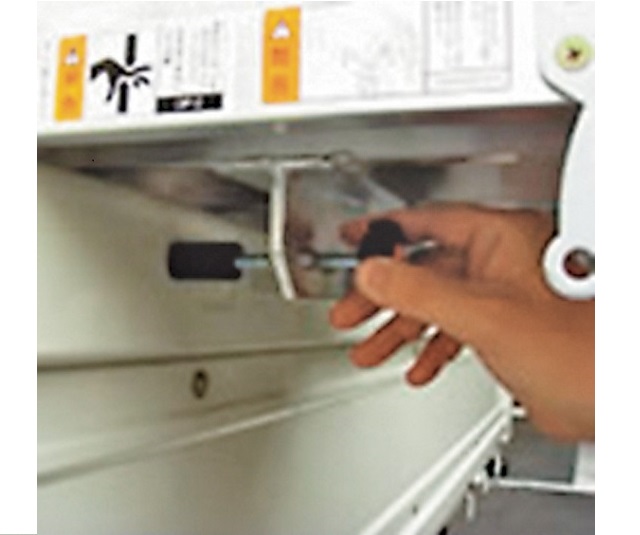

● Securing knob bolts (DXB-14/18)
Easy attachment to trucks. -

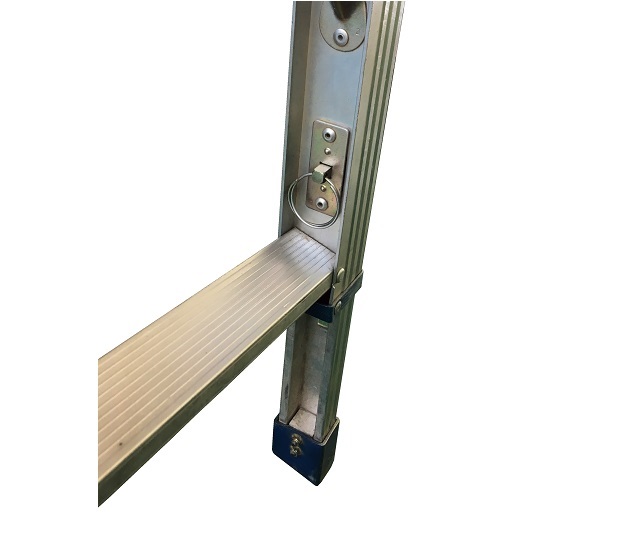

● Adjustable legs (DXB-14/18)
Leg height can be adjusted for a precise fit with tailboards and platform heights.
- Setup and height adjustments can be done without tools.
- Folds up compactly for storage.

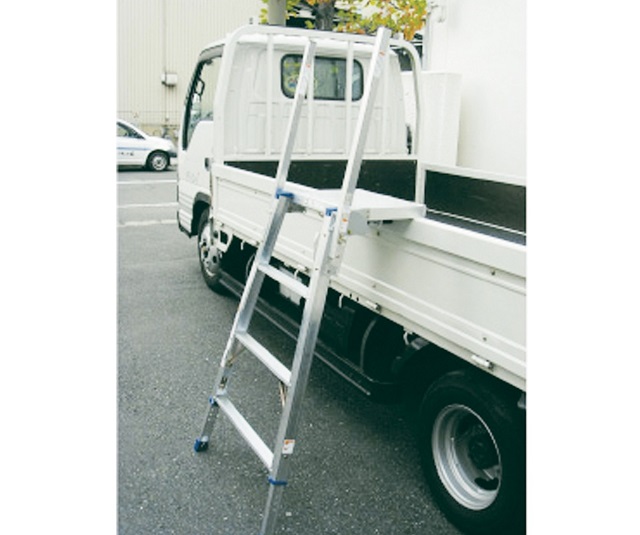

Example of use
Specifications

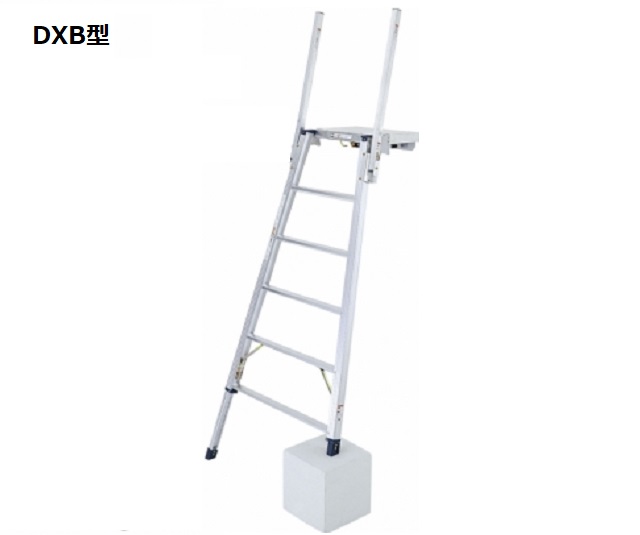

Truck Elevation Step
| Model | DXF-14TEA | DXB-14 | DXB-18 |
|---|---|---|---|
| Top panel dimensions: width (mm) | 400 | 500 | 500 |
| Top panel dimensions: length (mm) | 427 | 341 | 341 |
| Effective Height (Platform Height) mm | 1,020 to 1,450 | 957 to 1,413 | 1,400 to 1,856 |
| Adjustable range (mm) | 25 | 25 | 25 |
| Step width (mm) | 55.3 | 43 | 43 |
| Mounting dimensions width (mm) | 435 | 741 to 861 | 858 to 974 |
| Mounting dimensions length (mm) | 725 to 855 | 657 to 779 | 776 to 898 |
| Storage dimensions width (mm) | 540 | 786 | 858 |
| Storage dimensions length (mm) | 1,235 | 1,054 | 1,512 |
| Storage dimensions height (mm) | 165 | 172 | 172 |
| Weight Main unit (kg) | 11.2 | 9.5 | 10.8 |
| Max load kN(kgf) | 1.47(150) | 1.47(150) | 1.47(150) |
